| Product Model | GG8850 |
| Dimensions | 1100*720*1088mm |
| Grinding groove size | 800*520mm(square bucket) |
| Power supply | AC380v(50Hz)16A |
| Motor power | 4kw*1 |
| Equipment weight | 288KG |
| Grinding capacity | 20-30Kg |
| Operation mode | Positive and negative rotation |
| Steel needle | 8kg |
| Lapping liquid | 50L |
| Motor speed | 1400 RPM |
| Diameter | 0.2-2.00mm |

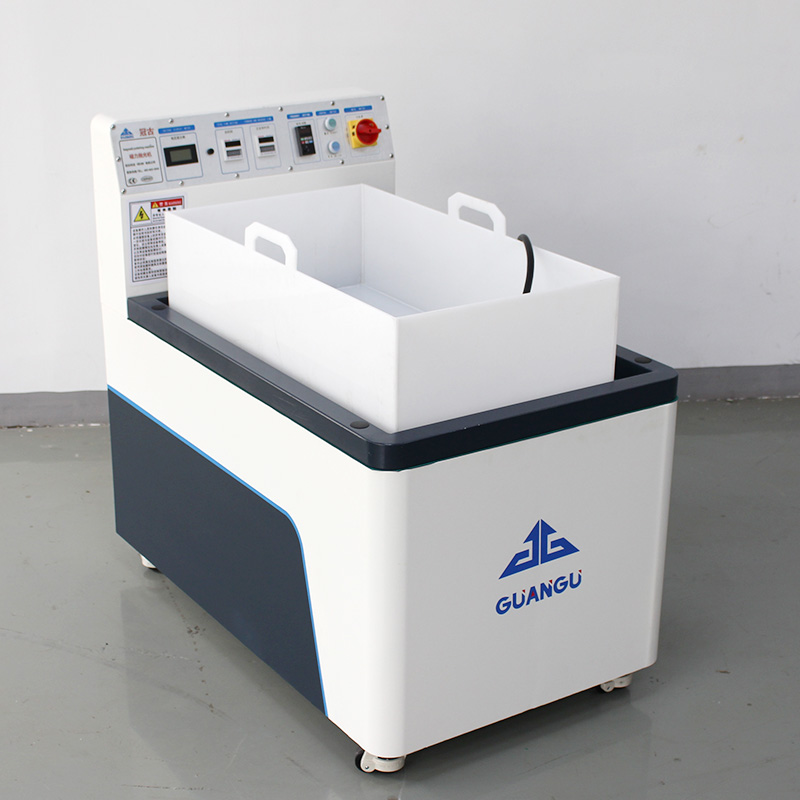

The metal magnetic polishing machine uses the power of magnetic field to guide the grinding material (magnetic grinding steel needle) to rotate rapidly and grind the workpiece, so as to achieve efficient grinding and Shekicleaning effects such as removing the rough edge of the metal workpiece (the front), Shekisurface polishing, cleaning, cleaning, removing the oxide film, sintering marks and rusting.
Polishing the surface of the workpiece, polishing, deburring the flying edge, batching, deoxidizing film, to the sintering mark, restoring the metal color cleaning, metal processing debris, residue, batching, surface electroplating, welding spot, metal surface paint removal, precision small profiled parts, irregular parts: removing burr (burr, batching front), polishing, cleaning, chamfering, enhancing surface hardness and other grinding completed at the same time; The minimum size of magnetic steel needle is 0.2mm*3mm, which can precisely grind irregular parts such as holes, pipes, cracks, dead angles, right angles and screw teeth of metal parts; The workpieces do not collide with each other in the process of grinding, and the workpieces of the product do not deform after magnetic grinding, do not affect the accuracy, and do not damage the surface. Guanggu magnetic rolling machine has strong stability and high efficiency; The grinding speed is fast, the average grinding time is about 3 minutes to 20 minutes, and the replacement of the workpiece is fast.
